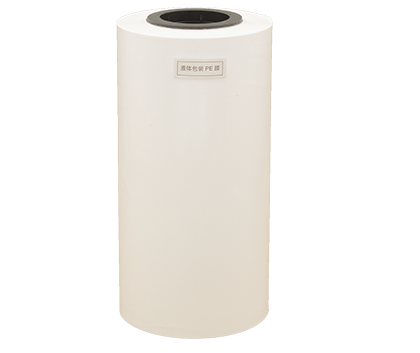

PE Film for Liquid Packaging
There are several key points to consider when selecting a PE liquid dairy packaging film. The film is required to be high moisture barrier, excellent machinery performance, odor barrier and excellent sealing property.
Overview:
Excellent anti-pollution heat seal performance with superior heat-sealing adhesion and temperature.
Application:
Laminated with PET and PA, which is widely used in liquid stand-up pouches, suction nozzle stand-up pouches and small package laundry detergent bags.
Specification:
Thickness 25-200μm, width 250-2550mm, length according to customer's requirement, winding paper core inner diameter 3 inches (76mm).
General Properties:
Item | PE for Liquid Packaging below 3kg | PE for Liquid Packaging 3-5kg | PE for Liquid Packaging above 5kg | PE for Liquid Packaging with Spout | |
Tensile Strength （MPa） | MD | ≥17 | ≥20 | ≥40 | ≥40 |
TD | ≥17 | ≥20 | ≥40 | ≥40 | |
Elongation （%） | MD | ≥350 | ≥500 | ≥600 | ≥350 |
TD | ≥350 | ≥500 | ≥600 | ≥350 | |
Heat Seal Strength(N/15mm) | ≥10 | ≥10 | ≥10 | ≥10 | |
Coefficient of Friction | ≥10 | ≤0.25 | ≤0.25 | ≥10 | |
Wetting Tension | ≥40 | ≥40 | ≥40 | ≥40 | |
Haze | ≤12 | ≤12 | ≤12 | ≤12 | |
For further information please feel free to contact us. We will get back to you in 24 hours.The data herein is measured on products which are reliable yet not guarantee value.
