PE Film for Tube Packaging
Appropriate C.O.F, low eutectic point and excellent printability.
Overview:
Appropriate C.O.F, low eutectic point and excellent printability.
Application:

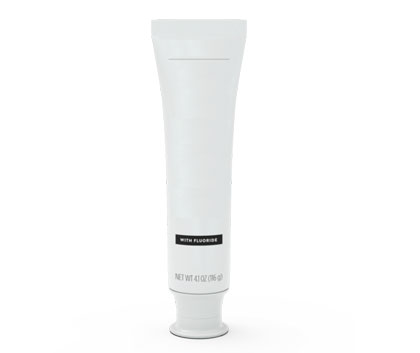

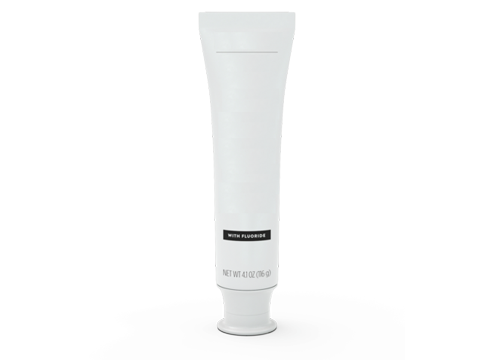

1. Surface printing for tube packaging;
2. PE and AL extrusion-laminated by EAA for tube packaging.
Specification:
Thickness 25-200μm, width 250-2550mm, length customized, core inner diameter 3”(76mm).
General Properties:
| Item | White PE for Outer Layer | High Transparent PE for Outer Layer | Transparent PE for Inner Layer | |
|---|---|---|---|---|
| Tensile Strength （MPa） | MD | ≥20 | ≥20 | ≥20 |
| TD | ≥20 | ≥20 | ≥20 | |
| Elongation (%) | MD | ≥500 | ≥500 | ≥500 |
| TD | ≥500 | ≥500 | ≥500 | |
| Heat Seal Strength(N/15mm) | ≥8 | ≥8 | ≥8 | |
| Coefficient of Friction | ≥0.35 | ≥0.35 | ≤0.3 | |
| Wetting Tension | ≥40 | ≥40 | ≥40 | |
| Haze | / | ≤23 | ≤32 | |
| Particle | ≤10/㎡, maximum diameter≤0.1mm | |||
The data herein is measured on products which are reliable yet not guarantee value.
